Quick Start¶

Configuration database¶

To use aiomyorm, first configure the database information.

The best way to configure it is to add a config.py file to your project directory, as shown in the following figure.

Then create a dict named aiomyorm in config.py, which contains your database related configuration, such as:

aiomyorm = {
            'maxsize': 3,
            'user': 'root',
            'password': '123456',
            'db': 'test',
            'engine': 'mysql'
        }

more configuration option see set_config

You can use the set_config_model() method to specify a specific Python file as the config file.

If you do not want to add an additional configuration file, you can also use the set_config() method to configure manually:

set_config(engine='sqlite',
           db='test.db')

Create Model¶

Like most ORM frameworks, you can create model classes to map your data tables.

class Test(Model):
__table__ = 'test'
pk = IntField(primary_key=True, default=auto_increment())
id = StringField(50)
age = IntField()
birth_place = StringField(50, default='china')
grade = SmallIntField()

more field see field

You can also specify the __auto__ property to be True. This model will automatically query all fields from the corresponding tables in the database and map them to itself.

class All_Field(Model):
__table__ = 'all_field'
__auto__ = True

Warning

__auto__ not support sqlite.

Create Table¶

aiomyorm allows you to create database tables directly using the framework without relying on other database management tools.

asyncio.get_event_loop().run_until_complete(Test.create_table())

Insert data¶

Inserting data with aiomyorm is simple. You only need to create a instance and call save() method.

async def go_save():
    await Test(pk=9999, age=20).save()

loop = asyncio.get_event_loop()
loop.run_until_complete(go_save())
loop.run_until_complete(close_db_connection())

All unassigned fields will be set to the default value of this Field.

If you want to insert more than one piece of data at a time, you need to call the insert() method.

async def go_insert():
    r = await Test.insert(Test(pk=5000, age=19, birth_place='place1'),
                           Test(pk=5001, age=21, birth_place='place2'),
                           Test(pk=5002, age=19, birth_place='place3'))
    assert r == 3

loop = asyncio.get_event_loop()
loop.run_until_complete(go_insert())
loop.run_until_complete(close_db_connection())

Note

insert() is a classmethod while save() is not.

Query from database¶

General query¶

aiomyorm provides three ways to execute queries: find(),``pk_find()`` and find_first(). The most common query method is find() and pk_find().

Note

find(), pk_find() and find_first() are all classmethod.

query all¶

find() will execute the query based on your restrictions and return all query objects in a list, by default, he will query the entire table:

async def go_find():
    r = await Test.find()
    import pprint
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_find())
loop.run_until_complete(close_db_connection())

results:

[<Test: {pk:5000, id:, age:19, birth_place:place1, grade:0}>,
 <Test: {pk:5001, id:, age:21, birth_place:place2, grade:0}>,
 <Test: {pk:5002, id:, age:19, birth_place:place3, grade:0}>,
 <Test: {pk:9999, id:, age:20, birth_place:china, grade:0}>]

filter results¶

You can use query() method to restrict the fields of the query and filter from the table using filter() method.

async def go_filter():
    r = await Test.query('pk', 'age').filter(age=19).find()
    import pprint
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_filter())
loop.run_until_complete(close_db_connection())

results:

[<Test: {pk:5000, age:19}>, <Test: {pk:5002, age:19}>]

filter() will use equal as the filter condition. If you want to filter more flexibly, use flex_filter().

async def go_flex_filter():
    r = await Test.query('pk', 'age').flex_filter(Test.age > 19).find()
    import pprint
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_flex_filter())
loop.run_until_complete(close_db_connection())

results:

[<Test: {pk:5001, age:21}>, <Test: {pk:9999, age:20}>]

The flex_filter() can also filter data objects according to <, = or start_with, see flex_filter()

Warning

If you have used methods such as filter() to restrict query results, do not use await to surrender control until you execute the query method(find() find_first() and so on):

# This is an example of a mistake
    async def go_filter():
        Test.query('pk', 'age')
        await other_task()
        r = await Test.find()

change database¶

Sometimes your data is stored in different databases. You can use change_db_one_time() or change_db() to switch databases:

async def go_change_db():
    r = await Test.change_db_one_time('test2').find()

The difference between change_db() and change_db_one_time() is that change_db() will permanently change the database of this model, And change_db_one_time() will only change in this query.

`find_first()` and `pk_find()`¶

Both two methods will directly return a data object, in which pk_find() is based on the value of the primary key, and find_first() is based on the filter criteria, and the first matching object is returned.

pk_find:

async def go_pk_find():
    r = await Test.pk_find(5000)
    print(r)
    print(isinstance(r, Test))

loop = asyncio.get_event_loop()
loop.run_until_complete(go_pk_find())
loop.run_until_complete(close_db_connection())

results:

pk:5000, id:, age:19, birth_place:place1, grade:0
True

find_first:

async def go_find_first():
    r = await Test.flex_filter(Test.pk>5000).find_first()
    print(r)
    print(isinstance(r, Test))

loop = asyncio.get_event_loop()
loop.run_until_complete(go_find_first())
loop.run_until_complete(close_db_connection())

results:

pk:5001, id:, age:21, birth_place:place2, grade:0
True

Note

What is the different between find_first() and limit() ?

Test.find_first() will return the first object in table while Test.limit(1).find() will return a list, although there is only one object in the list.

more useful API¶

aiomyorm also provides many useful APIs, see model

Aggregate query¶

aiomyorm allows you to easily perform aggregate queries:

async def go_aggregate():
    r = await Test.aggregate(Count('age'), maxage=Max('age'))
    import pprint
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_aggregate())
loop.run_until_complete(close_db_connection())

results:

{'COUNT__age': 4, 'maxage': 21}

or execute group aggregation query:

async def go_group():
    r = await Test.aggregate(Count('age'), maxage=Max('age'), group_by='age')
    import pprint
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_group())
loop.run_until_complete(close_db_connection())

results:

{19: {'COUNT__age': 2, 'maxage': 19},
 20: {'COUNT__age': 1, 'maxage': 20},
 21: {'COUNT__age': 1, 'maxage': 21}}

aiomyorm provides the following five aggregate functions:

Max(), Min(), Count(), Avg(), Sum()

more information see aggregate()

Delete from database¶

aiomyorm provides two methods to delete data from the database: delete() and remove()

`remove()`¶

remove() is used to delete the object from the table:

async def go_remove():
    t = await Test.pk_find(5000)
    await t.remove()

loop = asyncio.get_event_loop()
loop.run_until_complete(go_remove())
loop.run_until_complete(close_db_connection())

`delete()`¶

delete() is used for batch deletion. It can accept filter and other filter criteria and return the number of deleted rows.

async def go_delete():
    r = await Test.flex_filter(Test.age>=20).delete()
    print(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_delete())
loop.run_until_complete(close_db_connection())

results:

Note

delete() is a classmethod while remove() is not.

Update data¶

Similar to delete, aiomyorm provides two methods to perform update:save() and update()

`save()`¶

save() can be used not only to create data, but also to modify data:

async def go_save_update():
    await Test(pk=3333, id='old_data', age=20).save()
    r = await Test.pk_find(3333)
    print('old data: ', r)
    r.id = 'new data'
    r.age = 10
    await r.save()
    r_new = await Test.pk_find(3333)
    print('new data: ', r_new)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_save_update())
loop.run_until_complete(close_db_connection())

results:

old data:  pk:3333, id:old_data, age:20, birth_place:china, grade:0
new data:  pk:3333, id:new data, age:10, birth_place:china, grade:0

`update()`¶

update() is used to perform batch changes, which is similar to delete():

async def go_update():
    r = await Test.find()
    import pprint
    print('old values:')
    pprint.pprint(r)
    rows = await Test.filter(grade=0).update(age=18)
    r = await Test.find()
    print('update affect %d rows, new value is:' % rows)
    pprint.pprint(r)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_update())
loop.run_until_complete(close_db_connection())

results:

old values:
[<Test: {pk:3333, id:new data, age:10, birth_place:china, grade:0}>,
 <Test: {pk:5002, id:, age:19, birth_place:place3, grade:0}>,
 <Test: {pk:10000, id: , age:21, birth_place:place4, grade:2}>,
 <Test: {pk:10001, id: , age:26, birth_place:place5, grade:1}>]
update affect 2 rows, new value is:
[<Test: {pk:3333, id:new data, age:18, birth_place:china, grade:0}>,
 <Test: {pk:5002, id:, age:18, birth_place:place3, grade:0}>,
 <Test: {pk:10000, id: , age:21, birth_place:place4, grade:2}>,
 <Test: {pk:10001, id: , age:26, birth_place:place5, grade:1}>]

Note

update() is a classmethod while save() is not.

Complex SQL¶

Using ORM framework does not support complex queries very well, so sometimes you need to execute custom SQL statements.

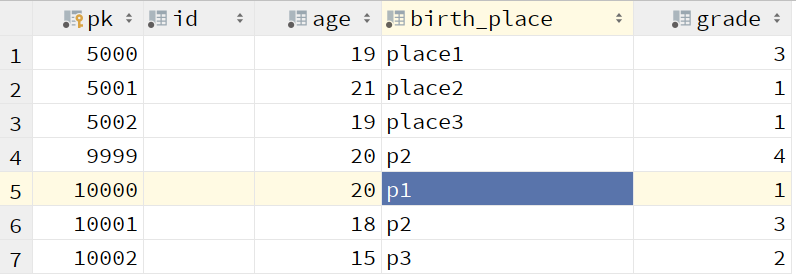

The next example is shown in the following table:

use `model.select`¶

async def go_select_1():
    rs = await Test.select('SELECT * FROM test WHERE age>(SELECT age FROM test WHERE pk=5002)')
    for r in rs:
        assert isinstance(r, Test)
    import pprint
    pprint.pprint(rs)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_select_1())
loop.run_until_complete(close_db_connection())

results:

[<Test: {pk:5001, id:, age:21, birth_place:place2, grade:1}>,
 <Test: {pk:9999, id:, age:20, birth_place:p2, grade:4}>,
 <Test: {pk:10000, id: , age:20, birth_place:p1, grade:1}>]

use basic `select()`¶

from aiomyorm import select

async def go_select_2():
    rs = await select('SELECT * FROM test WHERE age>(SELECT age FROM test WHERE pk=5002)')
    print(type(rs[0]))
    import pprint
    pprint.pprint(rs)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_select_2())
loop.run_until_complete(close_db_connection())

results:

<class 'dict'>
[{'age': 21, 'birth_place': 'place2', 'grade': 1, 'id': '', 'pk': 5001},
 {'age': 20, 'birth_place': 'p2', 'grade': 4, 'id': '', 'pk': 9999},
 {'age': 20, 'birth_place': 'p1', 'grade': 1, 'id': ' ', 'pk': 10000}]

Note

What’s the difference between Model.select() and select() ?

They will all return a list containing query results. The difference is that each item in the list returned by select() is a dict, while Model.select() is a Model object.

execute insert, update and delete¶

To do a custom insert, update or delete, you can use either execute() or Model.execute(), which have the same performance and will return the number of rows affected.

async def go_execute():
    rs = await execute('UPDATE test set id="little boy" WHERE age>(SELECT age FROM test WHERE pk=5002)')
    print(rs)

loop = asyncio.get_event_loop()
loop.run_until_complete(go_execute())
loop.run_until_complete(close_db_connection())

results:

Transaction¶

Every time aiomyorm accesses the database, transactions will be enabled by default, but sometimes you need to perform multiple queries in a transaction. aiomyorm provides this method for you:

async with Transaction() as conn:
    # some query ...

You only need to use method use() or directly specify conn in each query to use this conn, then all queries will be in the same transaction, and if there is an error, it will be automatically rolled back.

async def go_transaction():
    rs_old = await Test.find()
    rs_trans = None
    try:
        async with Transaction() as conn:
            r = await execute('insert into test (id,age,birth_place,grade) values ("00020",18,"北京",1)', conn=conn)
            rs_trans = await Test.use(conn).find()
            100 / 0  # make error
    except ZeroDivisionError:
        pass
    assert r == 1
    rs_new = await Test.find()

    import pprint
    print('old:')
    pprint.pprint(rs_old)
    print('in transaction:')
    pprint.pprint(rs_trans)
    print('new:')
    pprint.pprint(rs_new)

    assert rs_old == rs_new
    assert rs_old != rs_trans

results:

old:
[<Test: {pk:5000, id:, age:19, birth_place:place1, grade:0}>,
 <Test: {pk:5001, id:, age:21, birth_place:place2, grade:0}>,
 <Test: {pk:5002, id:, age:19, birth_place:place3, grade:0}>]
in transaction:
[<Test: {pk:5000, id:, age:19, birth_place:place1, grade:0}>,
 <Test: {pk:5001, id:, age:21, birth_place:place2, grade:0}>,
 <Test: {pk:5002, id:, age:19, birth_place:place3, grade:0}>,
 <Test: {pk:5005, id:00020, age:18, birth_place:北京, grade:1}>]
new:
[<Test: {pk:5000, id:, age:19, birth_place:place1, grade:0}>,
 <Test: {pk:5001, id:, age:21, birth_place:place2, grade:0}>,
 <Test: {pk:5002, id:, age:19, birth_place:place3, grade:0}>]

Thanks for reading!

Quick Start¶

Configuration database¶

Create Model¶

Create Table¶

Insert data¶

Query from database¶

General query¶

query all¶

filter results¶

change database¶

find_first() and pk_find()¶

more useful API¶

Aggregate query¶

Delete from database¶

remove()¶

delete()¶

Update data¶

save()¶

update()¶

Complex SQL¶

use model.select¶

use basic select()¶

execute insert, update and delete¶

Transaction¶

`find_first()` and `pk_find()`¶

`remove()`¶

`delete()`¶

`save()`¶

`update()`¶

use `model.select`¶

use basic `select()`¶
